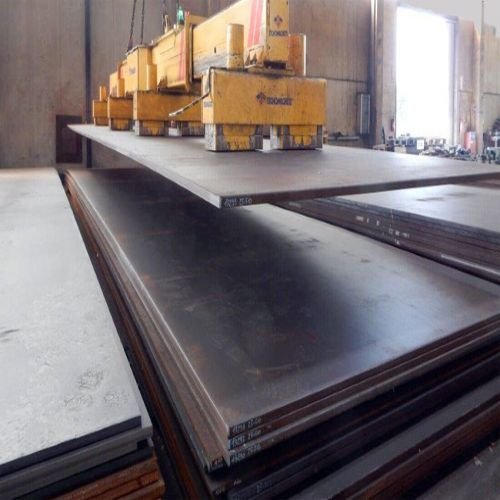

Mild Steel Plates

Product Description:
Mild Steel Plates, also known as MS Plates, are low carbon steel plates known for their strength, workability, and cost-effectiveness. These plates are widely used across industrial and commercial sectors due to their excellent weldability, machinability, and high tensile strength. Mild steel plates provide a reliable solution for structural and general engineering applications.

Key Features:

• Low Carbon Content – Ideal for easy fabrication and forming

• Excellent Weldability – Perfect for structural joining and fabrication

• High Ductility & Toughness – Ensures durability under stress

• Corrosion Resistance – Can be coated or galvanized for extended life

• Versatile Applications – Suitable for various sectors from construction to shipbuilding

Specifications:

• Material Grade: IS 2062, ASTM A36, EN 10025

• Thickness: 1.5mm – 200mm

• Width: 500mm – 3000mm

• Length: 1000mm – 12000mm

• Surface Finish: Hot Rolled (HR), Cold Rolled (CR), Galvanized (GI)

• Form: Plain Sheet, Chequered Plate, HR/CR Coils

Mechanical Properties:

• Yield Strength: 240 – 410 MPa

• Tensile Strength: 410 – 560 MPa

• Elongation: 20% – 25%

• Hardness: ≤200 BHN (Typically)

Chemical Composition (% max):

• Carbon (C): ≤ 0.25%

• Manganese (Mn): ≤ 1.50%

• Sulphur (S): ≤ 0.050%

• Phosphorus (P): ≤ 0.050%

Applications:

• General Fabrication

• Construction (Beams, Columns, Platforms)

• Shipbuilding & Automotive

• Boilers & Pressure Vessels

• Tanks, Silos, Pipelines

• Railway Cars, Industrial Machinery

Processing Services Offered:

• Plasma/Laser/Flame Cutting

• Shearing & Bending

• Surface Coating & Galvanizing

• Machining & Drilling

• Custom Shapes & Sizes Available

Standards & Grades Available:

• Indian Standards: IS 2062 Gr A / B / E250 / E350

• American Standards: ASTM A36 / A283

• European Standards: EN 10025 S235JR / S275JR / S355JR

Country of Origin:
India | Japan | Korea | Europe | UAE
