500 Kilogram (MOQ)
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer |
| Type | Boiler Plates |
| Material | Pressure Vessel Steel |
| Color | Metallic |
| Click to view more | |
Product Details

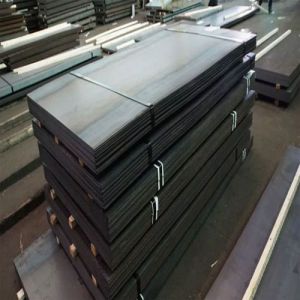

NACE & HIC tested boiler plates are high-quality pressure vessel steel plates designed for use in sour service environments where hydrogen sulfide (H₂S) is present. These plates are tested for Hydrogen-Induced Cracking (HIC) and comply with NACE MR0175 / MR0103 standards to ensure safe, reliable operation under highly corrosive conditions.
These plates are ideal for welded pressure vessels, storage tanks, and heat exchangers in industries like oil & gas, petrochemical, refinery, and offshore energy.
🔩 Key Features-
Guaranteed HIC and SSC resistance
-
Complies with NACE MR0175 / MR0103 / ISO 15156
-
Excellent weldability, toughness & thickness tolerance
-
Tested as per NACE TM0284 standard
-
Suitable for critical sour service applications
| Available Grades | SA 516 GR.60N, GR.70N, SA 537 CL.1, HIC Grade Steel |
| Condition | Normalized / Q&T / Simulated PWHT |
| Thickness | 5 mm – 150 mm |
| Width | 1000 mm – 3000 mm |
| Length | 3000 mm – 12000 mm |
| Surface Finish | Mill Finish / Shot Blasted / Painted |
| MOQ | 10 Metric Tons |
| Delivery Time | 7 – 12 Working Days |
| Yield Strength | ≥ 260 MPa |
| Tensile Strength | 485 – 620 MPa |
| Elongation | Min 21% (50 mm gauge length) |
| Impact Toughness | ≥ 27 J at -46°C (as per spec) |
-
HIC Test – As per NACE TM0284
-
SSC Test – Sulfide Stress Corrosion Test
-
Ultrasonic Testing (UT) – Level B / C
-
Charpy Impact Test – Optional at sub-zero temperatures
-
PMI / Hardness / Flattening / Spectro Testing – On request
-
Visual, Hydrostatic, Micro/Macro, Radiographic Testing
-
Sour gas & oil processing units
-
High-pressure boilers and vessels
-
Reactors, separators, and exchangers
-
Storage tanks and pressure spheres
-
Refinery and petrochemical plant vessels
-
Offshore structures and subsea equipment
-
Mill Test Certificate – EN 10204 3.1 / 3.2
-
HIC/SSC Compliance Certificate
-
NACE Compliance Certificate
-
Third-party inspection (TUV, DNV, Lloyds, BV)
-
Custom QA/QC plans and export documentation
