Product Details
Product Overview:

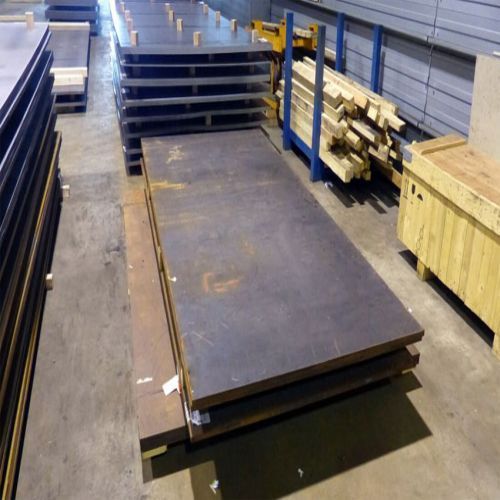

S355JR+N Plates are structural steel plates standardized under EN 10025-2 with the “+N” indicating normalizing treatment for enhanced mechanical properties and structural reliability. These plates provide minimum 355 MPa yield strength, excellent weldability, and are impact tested at 20°C (JR designation), making them ideal for general engineering and structural applications.
🔍 Key Features:
-
Minimum yield strength of 355 MPa
-
Supplied in Normalized (+N) condition
-
Good impact resistance at room temperature (20°C)
-
Excellent weldability and machinability
-
Suitable for moderate temperature structural applications
📐 Technical Specifications:
| Grade | S355JR+N |
| Standard | EN 10025-2 |
| Thickness | 6 mm – 150 mm |
| Width | 1000 mm – 3500 mm |
| Length | 2000 mm – 14000 mm |
| Delivery Condition | Normalized (+N) |
| Certification | EN 10204 3.1 / 3.2, NACE (optional) |
🧪 Chemical Composition (% Max):
| Carbon (C) | 0.20 |
| Manganese (Mn) | 1.60 |
| Silicon (Si) | 0.50 |
| Phosphorus (P) | 0.030 |
| Sulfur (S) | 0.030 |
| Nitrogen (N) | 0.012 |
🔩 Mechanical Properties:
-
Yield Strength (Min):
-
≤16mm: 355 MPa
-
16mm: 345 MPa
-
-
Tensile Strength: 470 – 630 MPa
-
Elongation: ≥ 20%
-
Impact Strength: 27J at +20°C (JR+N grade)
🏗️ Applications:
-
General construction and engineering structures
-
Bridges and towers
-
Transport equipment
-
Mining equipment and machine parts
-
Crane booms, frames, and load-bearing members
⚙️ Value-Added Services:
-
Cutting (Laser/Plasma)
-
Drilling, Milling, and Bending
-
Surface Coating (Primer or Galvanizing)
-
Ultrasonic Testing (UT)
-
Third Party Inspection (TPI)
-
Custom Lengths and Profiles
🌍 Available Brands / Country of Origin:
-
SAIL / JSPL / ESSAR / TATA – India
-
Dillinger / ThyssenKrupp – Germany
-
ArcelorMittal – Europe
-
SSAB – Sweden
